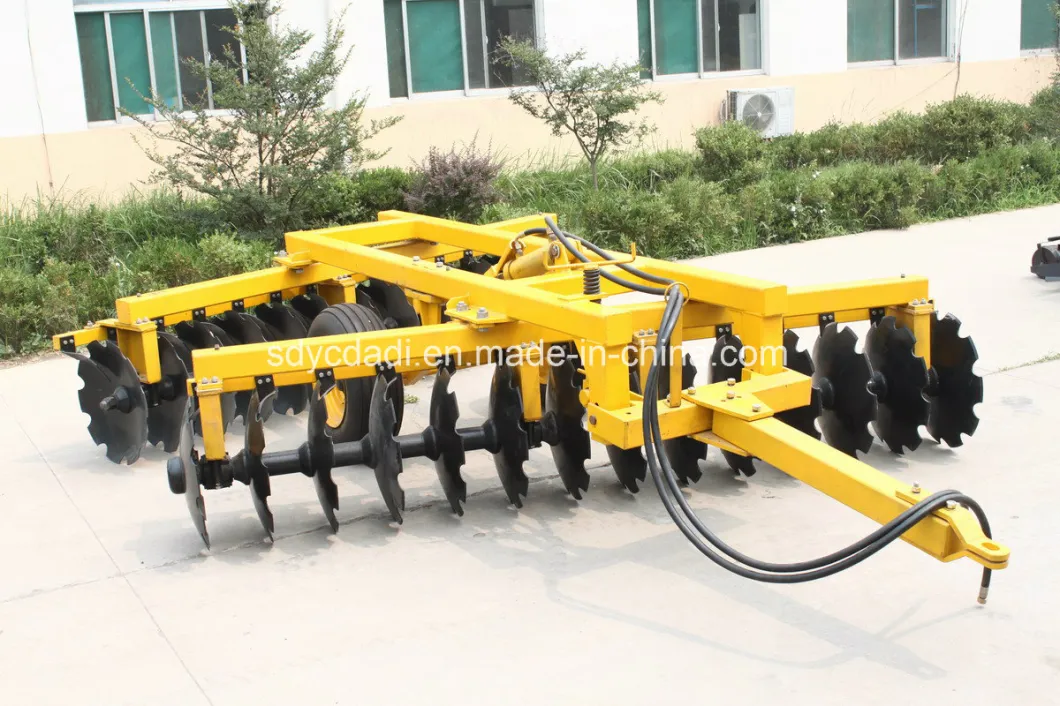

Farm Heavier Duty Disc Harrow

Product Description

Farm Heavier Duty Disc Harrow

Working width: 2.9-4.0 m
No. Of disc: 16-56 discs
Matched tractor power: 80HP to 150HP

The series heavy-duty off-set disc harrows are mainly used for cleaning away stubble of plants before tillage, or uncultivated land and in sticky heavy clay soil fields. They could also be used as a Plough for primary tillage in dry cultivated fields. The surface of the field after harrowing is level and the crushing and clearing ability of the harrow is satisfactory.

The series products are all fitted with hydraulic rubber wheel for transportation. They are easy to be hook up, simple to be adjusted, and easy to be transported and change direction on the edge of fields.
Type Advanced version
Model 1BZN-4.01BZN-3.51BZN-3.0
Working widthmm3975-40003420-35802915-3050
Total Weightkg23101980-20401880-1930
Qty. of discpcs322824
Dia. Of discinch                                                                                                                                                             26"
Thickness of discmm                                                                                                                                                              6
Spacing of discmm                                                                                                                                                        270
Weight of spoolkg                                                                                                                                                    11.8
Thickness of framemm                                                                                                                                                          8
Lead beammm                                                                                                                                                    120× 8× 120
Model of tyre                                                                                                                                               11L-15, 12PR
Qty. of bearingper                                                                                                                                                        16
Bearings categoryper                                                                                                                                          taper roller bearing
The bearings assembles a way-                                                                                                                      double seal combination type
Weight of bearing assemblykg                                                                                                                                                22
Qty. of bearing assemblyset                                                                                                                                                8
Axle of discmm                                                                                                  Round  diameter 42
Ground clearancemm                                                                                                                                                  260
Overall Dimension (LxWxH)mm5500× 4100× 12305450× 3960× 12305370× 3560× 1230
Matched tractor powerhp> 10090-14080-120
Thickness of steel plate for framemmThe plate of advanced version is not less than 2mm more than ordinarily.


Farm Heavier Duty Disc Harrow
Farm Heavier Duty Disc Harrow
Farm Heavier Duty Disc Harrow
Farm Heavier Duty Disc Harrow
Farm Heavier Duty Disc Harrow


Contact us if you need more details on Farm Heavier Duty Disc Harrow. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Disk Harrow、Heavy Duty Disc Harow. If these products fail to match your need, please contact us and we would like to provide relevant information.
